Comprehensive Analysis of ABB ACS880-07XT-1190A-3 Drive

2026-04-16
Source: Fangfang Automation Technology
Author: Fangfang Automation Team

In modern industrial environments, high-power motor control systems are critical for achieving stable operation, process efficiency, and energy optimization. Variable frequency drives (VFDs) are widely applied in industries such as mining, metallurgy, and heavy manufacturing, where precise motor control and high reliability are required. Among these solutions, the ACS880-07XT-1190A-3 from ABB is designed to meet demanding operational requirements with high current capacity and advanced control performance.

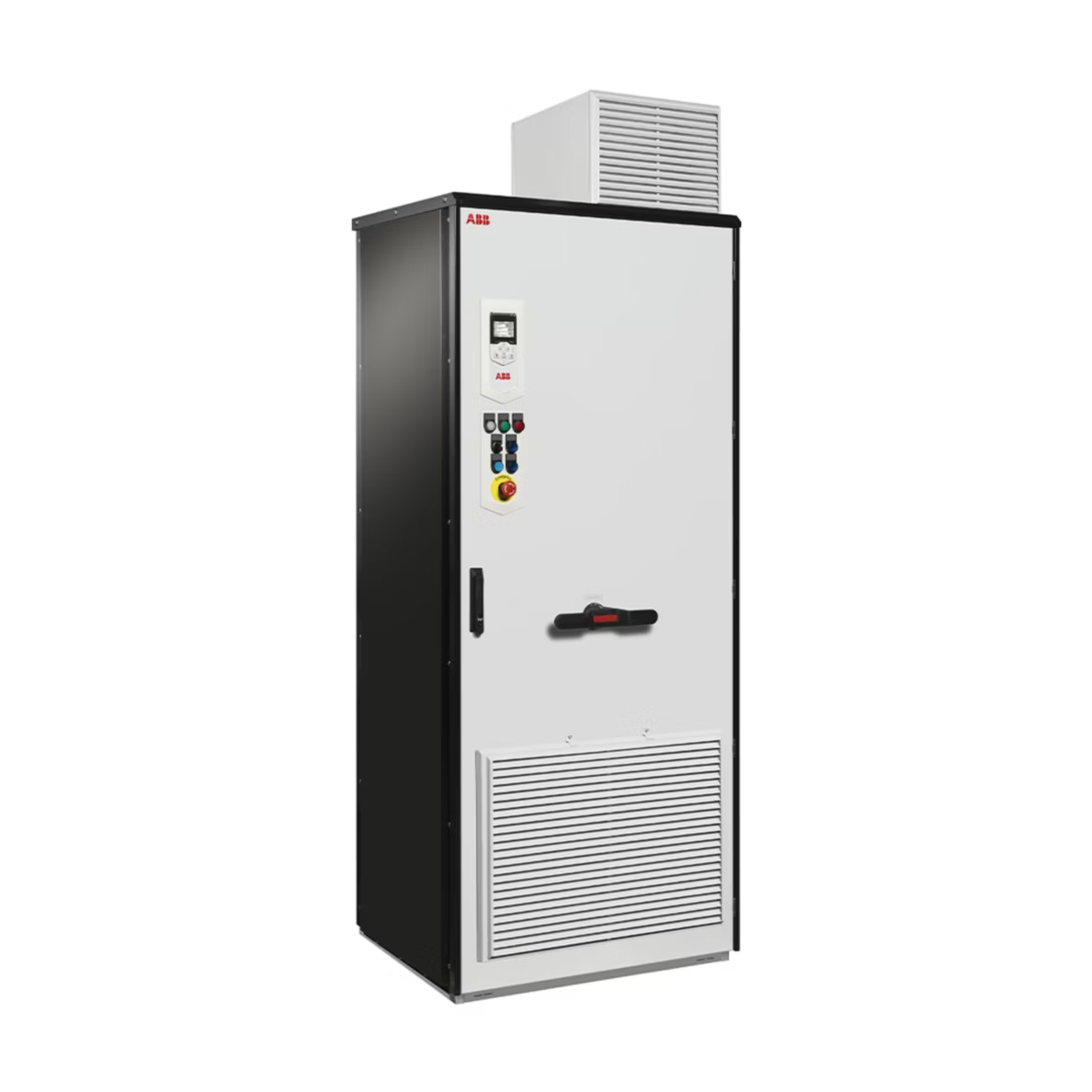

The ACS880-07XT-1190A-3 belongs to the ACS880 industrial drive series, which is typically configured for cabinet-built installations. Under standard operating conditions, the drive is designed for three-phase 400V systems, with a nominal current rating of approximately 1190A and a motor power capacity reaching up to around 630 kW, depending on system configuration. This makes it suitable for large-scale industrial motor applications.

A key feature of this model is its modular and scalable architecture. The system is commonly implemented using configurations such as 2×R10 frames, allowing it to manage high current levels while maintaining a compact installation footprint. This modular design supports flexible integration into both new systems and retrofit projects, and it enables future scalability based on evolving operational requirements.

In terms of control performance, the ACS880-07XT-1190A-3 incorporates advanced motor control technologies, including Direct Torque Control (DTC). This approach allows for accurate and responsive control of motor torque and speed without requiring feedback devices in many applications. As a result, the drive can achieve high dynamic performance, improved process stability, and reduced mechanical stress on connected equipment. Such characteristics are particularly important in applications including rolling mills, conveyor systems, and heavy-duty lifting equipment.

Thermal performance is another important consideration for high-power drives. The ACS880-07XT-1190A-3 typically utilizes a hybrid cooling approach, combining forced air cooling with optional liquid cooling solutions. Depending on the installation environment and configuration, the system can operate reliably at ambient temperatures of up to approximately 50°C. Efficient thermal management contributes to stable long-term operation and helps extend component service life.

Energy efficiency is a defining advantage of the ACS880 series. The drive includes features such as adaptive flux optimization, which improves motor efficiency under varying load conditions. In addition, regenerative operation capability allows excess energy generated during braking to be returned to the system or dissipated efficiently. These features are particularly beneficial in applications with variable loads or frequent acceleration and deceleration cycles.

From a system integration perspective, the drive supports a range of industrial communication protocols, including Modbus and PROFINET, enabling compatibility with PLCs, distributed control systems (DCS), and other automation platforms. Advanced software functions, such as condition monitoring and process protection, further enhance system reliability by detecting abnormal operating conditions at an early stage.

Safety functions are also integrated into the design. The ACS880-07XT-1190A-3 includes protection mechanisms such as overcurrent, overvoltage, and thermal protection. In addition, it supports functional safety features like Safe Torque Off (STO), which enables safe motor shutdown in accordance with industrial safety requirements.

In practical industrial applications, this model is commonly used in sectors requiring high reliability and performance. Typical use cases include rolling mill drives in steel production, conveyor and ventilation systems in mining operations, and synchronized drive systems in material handling and logistics environments.

The ACS880 platform also emphasizes ease of commissioning and maintenance. Standardized engineering tools are available for configuration, diagnostics, and system optimization, which can help reduce commissioning time and simplify long-term maintenance. The use of common components across the product family further supports efficient spare parts management.

Conclusion

The ACS880-07XT-1190A-3 drive represents a high-performance solution for large-scale industrial motor control applications. With its modular design, advanced control capabilities, and efficient thermal and energy management, it is well suited for demanding industrial environments requiring reliability, flexibility, and operational efficiency.
