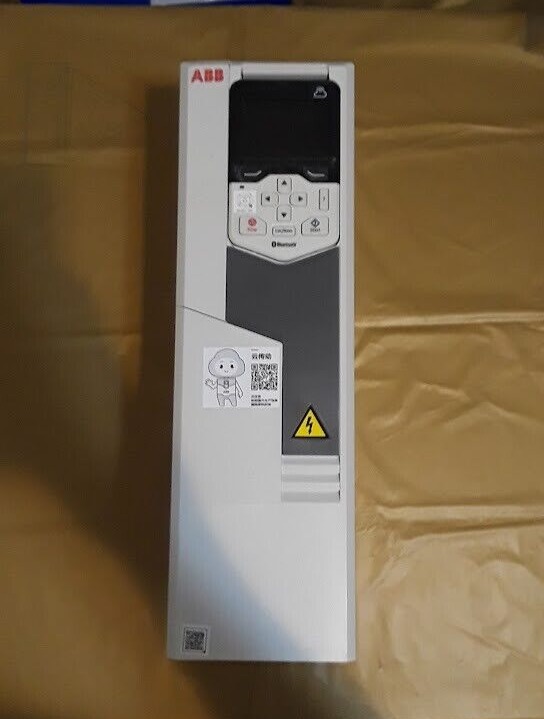

The ABB ACS580-01-018A-4 is a 7.5 kW (10 HP) general-purpose VFD, designed for reliable, energy-efficient control of 3-phase motors. With built-in safety, global certifications, and easy integration, it’s ideal for pumps, fans, and conveyors in industrial and commercial applications.

Key Features:

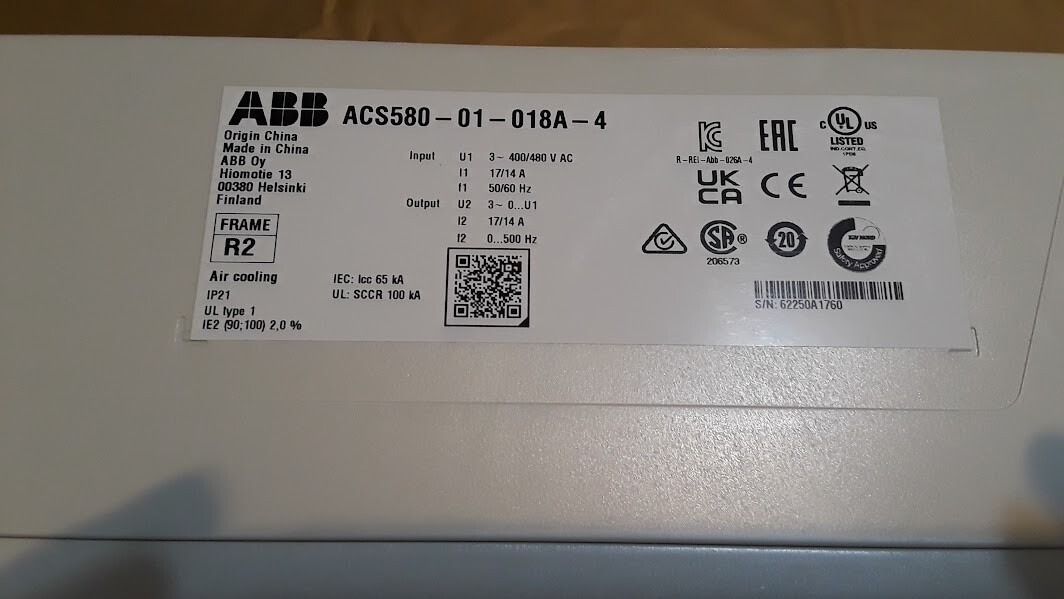

• Rated Power: 7.5 kW (10 HP) nominal power, 5.5 kW heavy-duty rating

• Input: 3-phase 400/480 V AC, 50/60 Hz

• Output: 3-phase 0–U1 V AC, 0–500 Hz

• Current Ratings: 17 A (light overload), 14 A (heavy duty)

• Frame Size: R2

• Cooling: Air-cooled

• Enclosure Rating: IP21 (UL Type 1)

• Short-Circuit Rating: IEC 65 kA, UL 100 kA SCCR

• Efficiency Class: IE2

• Safety Function: Built-in Safe Torque Off (STO, SIL 3 / PL d) as standard

• Control Modes: Scalar (V/Hz) and vector control (open-loop)

• Communication: Modbus RTU (RS-485) on-board, optional fieldbus support (PROFINET, EtherNet/IP, PROFIBUS, etc.)

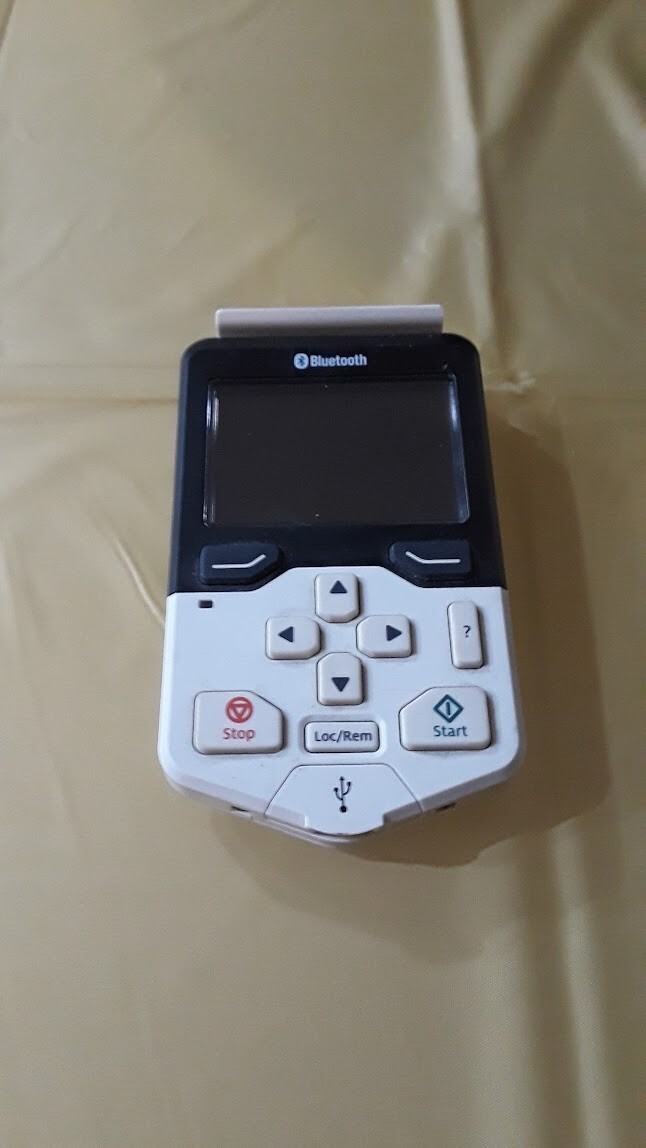

• User Interface: Multilingual, intuitive control keypad with guided setup wizards

• Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, short-circuit, motor stall/overload protection

• Certifications: CE, UL (US/Canada), EAC, UKCA, KC, CSA, RoHS compliant

• PCB Coating: Conformal coated circuit boards for enhanced environmental resistance

• Mounting: Wall-mounted design

• Applications: Pumps, fans, conveyors, mixers, compressors, and general industrial motor control
