The Siemens 6AV2124-1DC01-0AX0 (KP400 Comfort) is a high-performance 4.3-inch keypad-operated HMI from the SIMATIC Comfort Panel series, built for reliable industrial control and monitoring in demanding environments.

Key Features

• Display: It includes a 4.3-inch color TFT display with a resolution of 480 x 272 pixels, capable of showing 16,777,216 colors.

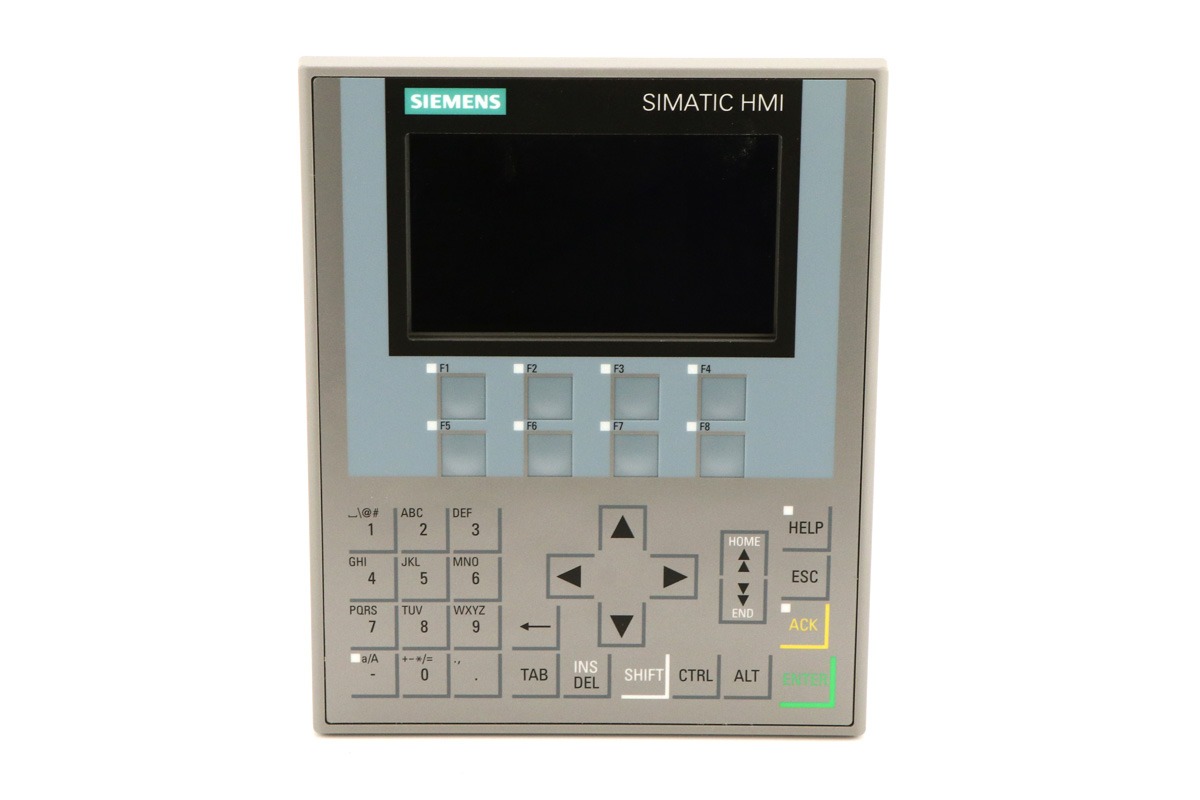

• Operation: The interface uses physical keys only, making it suitable for environments where touch operation is not ideal.

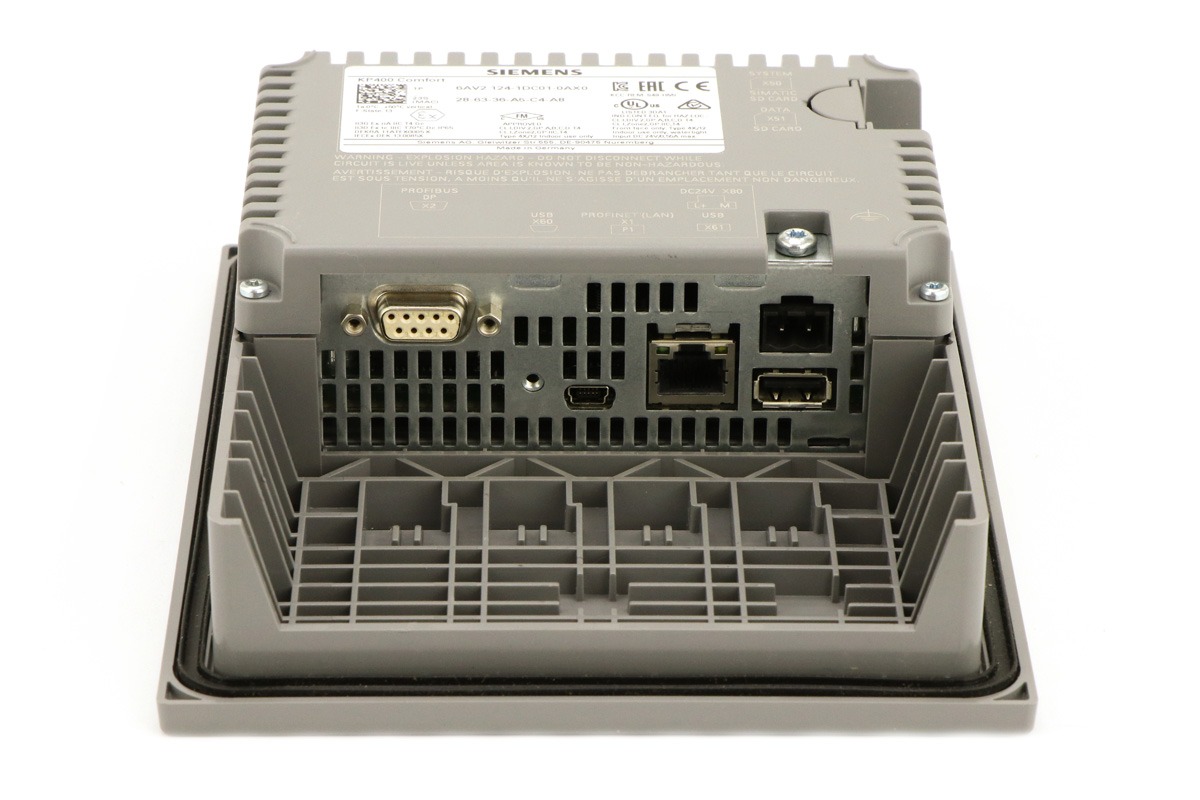

• Communication: It supports both PROFINET and PROFIBUS industrial communication protocols for seamless integration with Siemens PLC systems.

• Power Supply: The HMI operates on a 24V DC power supply with a maximum current draw of 0.55A.

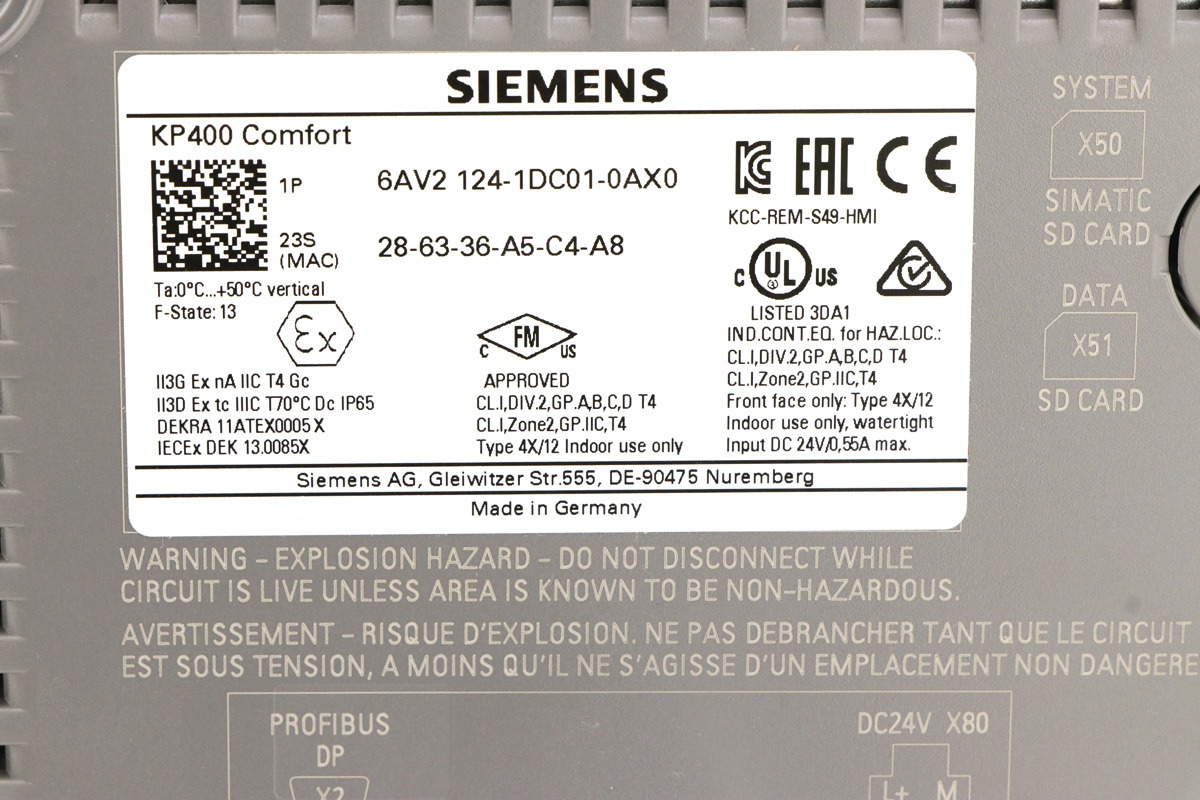

• Certifications: It holds key certifications including CE, UL, EAC, ATEX/IECEx, and KCC for global and hazardous location use.

• Environmental Rating: The front face of the unit is rated IP65, offering protection against dust and water ingress.

• Dimensions & Weight: The HMI measures 216 x 167 x 69 mm and weighs 1.87 lbs (0.85 kg).

• Mounting & Temperature: It is designed for vertical mounting and operates within a temperature range of 0°C to +50°C.

• Origin: The Siemens KP400 Comfort (6AV2124-1DC01-0AX0) is manufactured in Germany.
