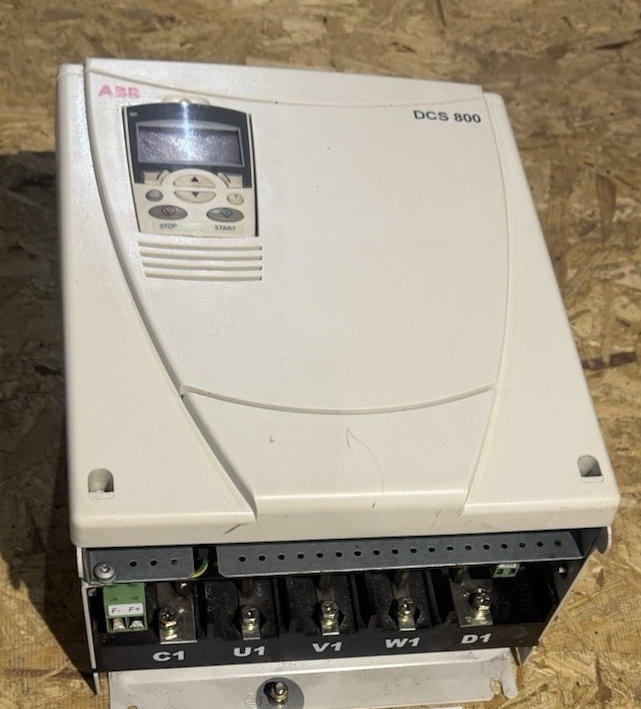

German-manufactured 4-quadrant thyristor drive designed for industrial DC motor control. Features a 3-phase 525V AC input, 545V DC output, and handles 82A continuous (100A peak). Certified with CE, UL, and CSA, it offers robust performance in demanding automation environments.

Key Features

• The product is a DC drive (digital thyristor-based motor controller).

• It belongs to the ABB DCS800 series.

• It has a 3-phase AC input.

• The rated input voltage is 3~525 V AC.

• The rated output voltage is 545 V DC.

• The continuous output current is 82 A.

• It supports a 100 A overload current.

• The operating frequency is 50/60 Hz.

• It uses a thyristor-based power stage.

• It offers 4-quadrant regenerative operation.

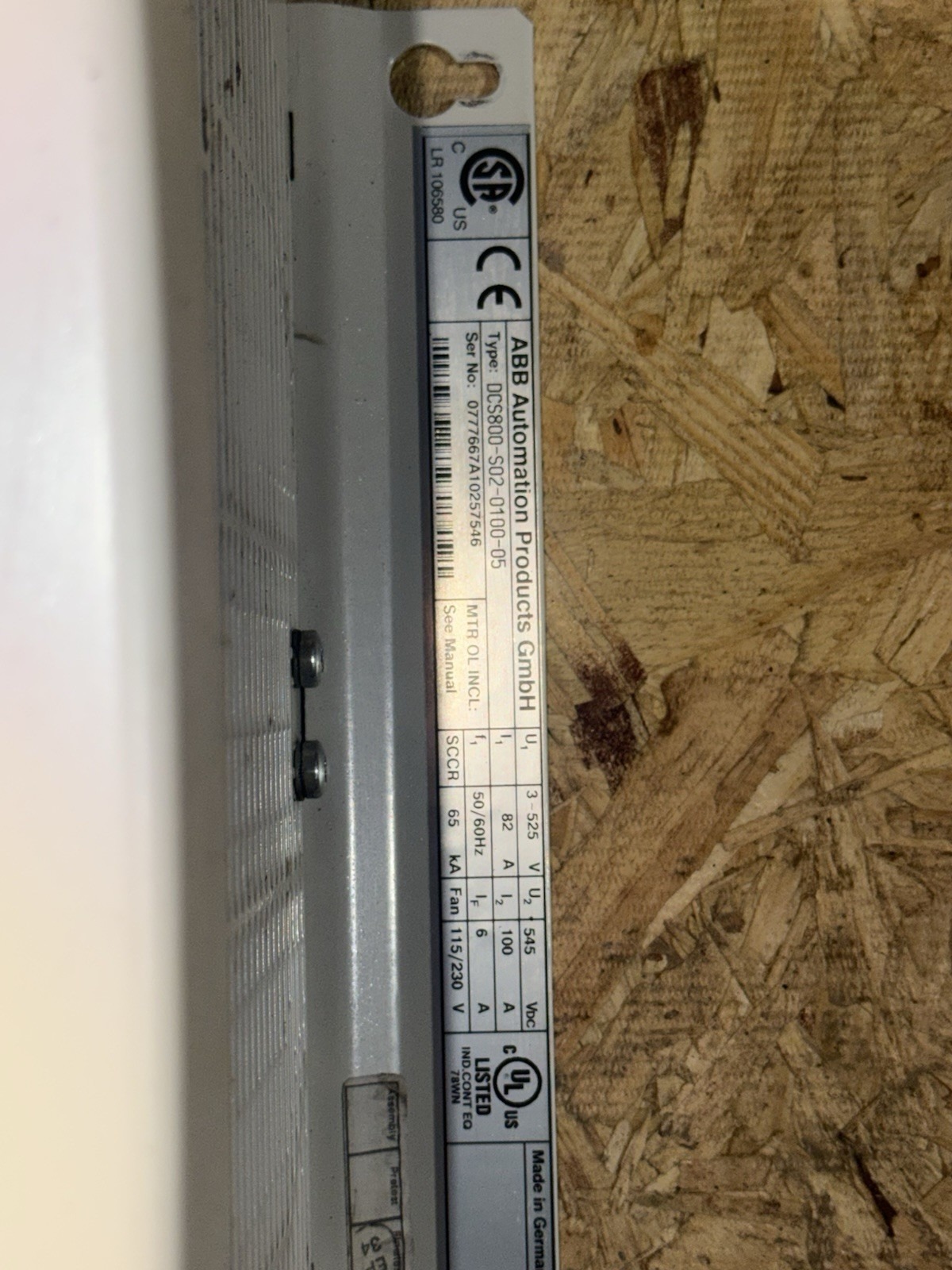

• It is certified with CE, UL, and CSA.

• It features the S02 frame size.

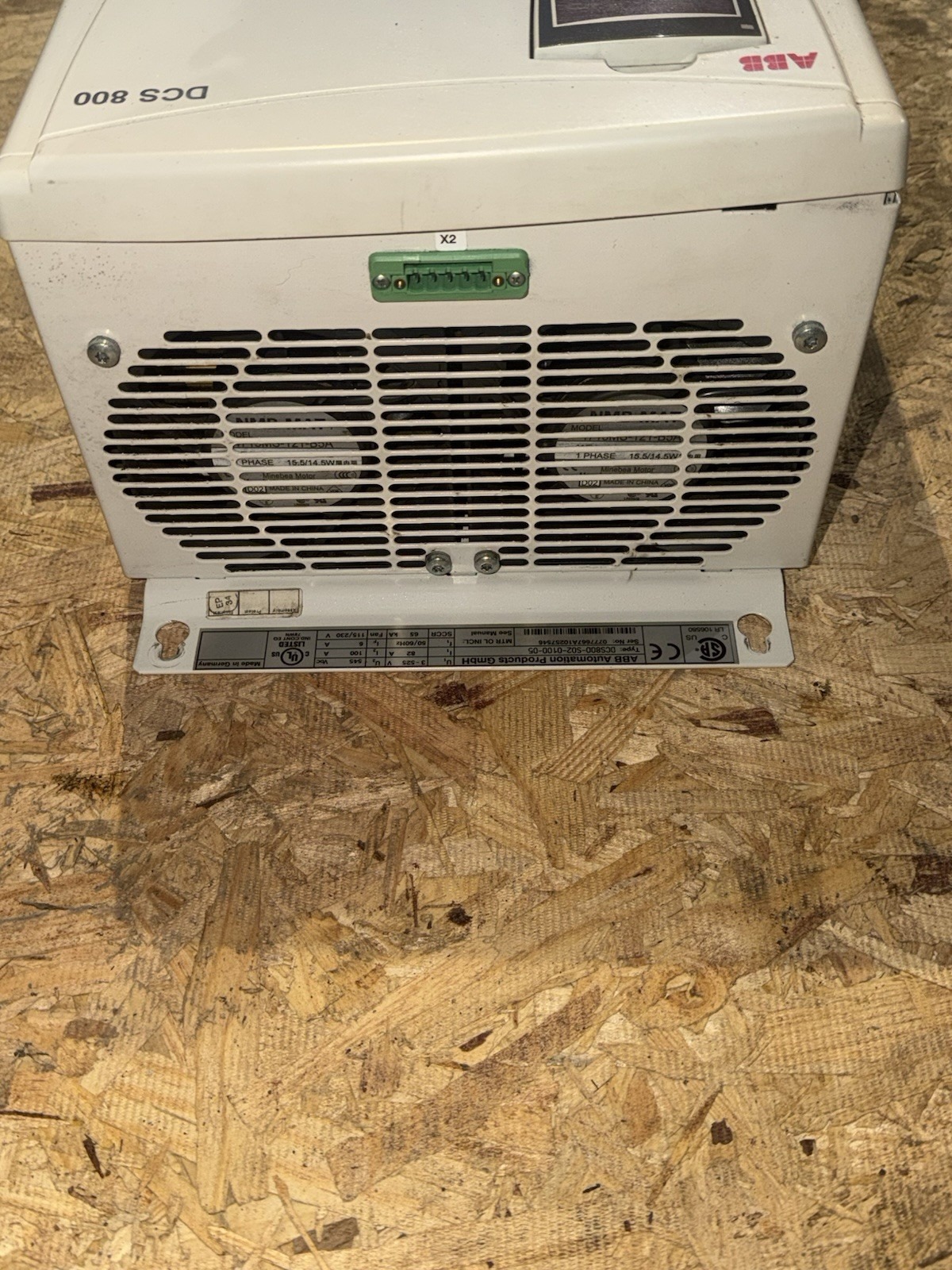

• It is fan-cooled with a 115/230 V auxiliary power supply.

• It has a 65 kA SCCR rating for high short-circuit withstand capability.
