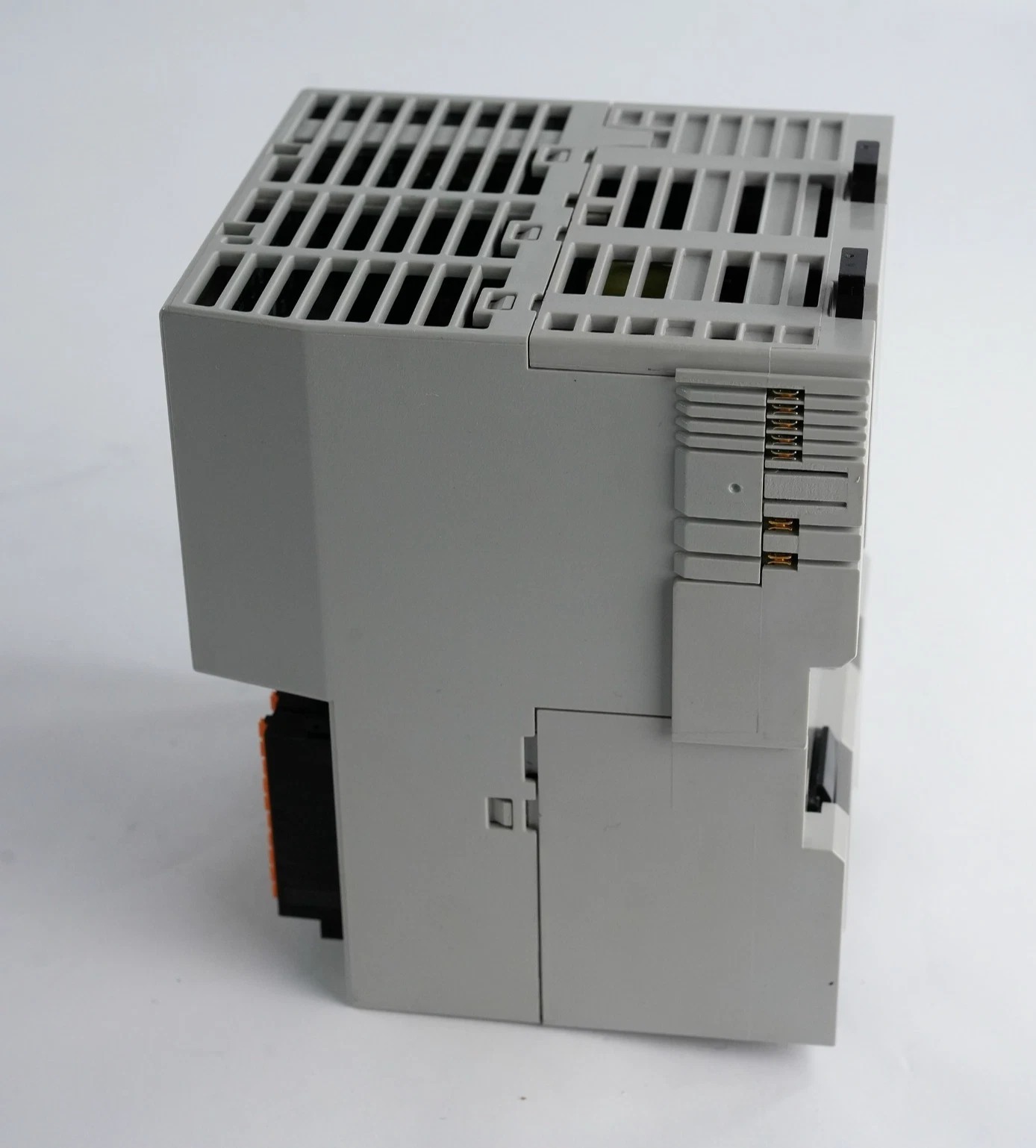

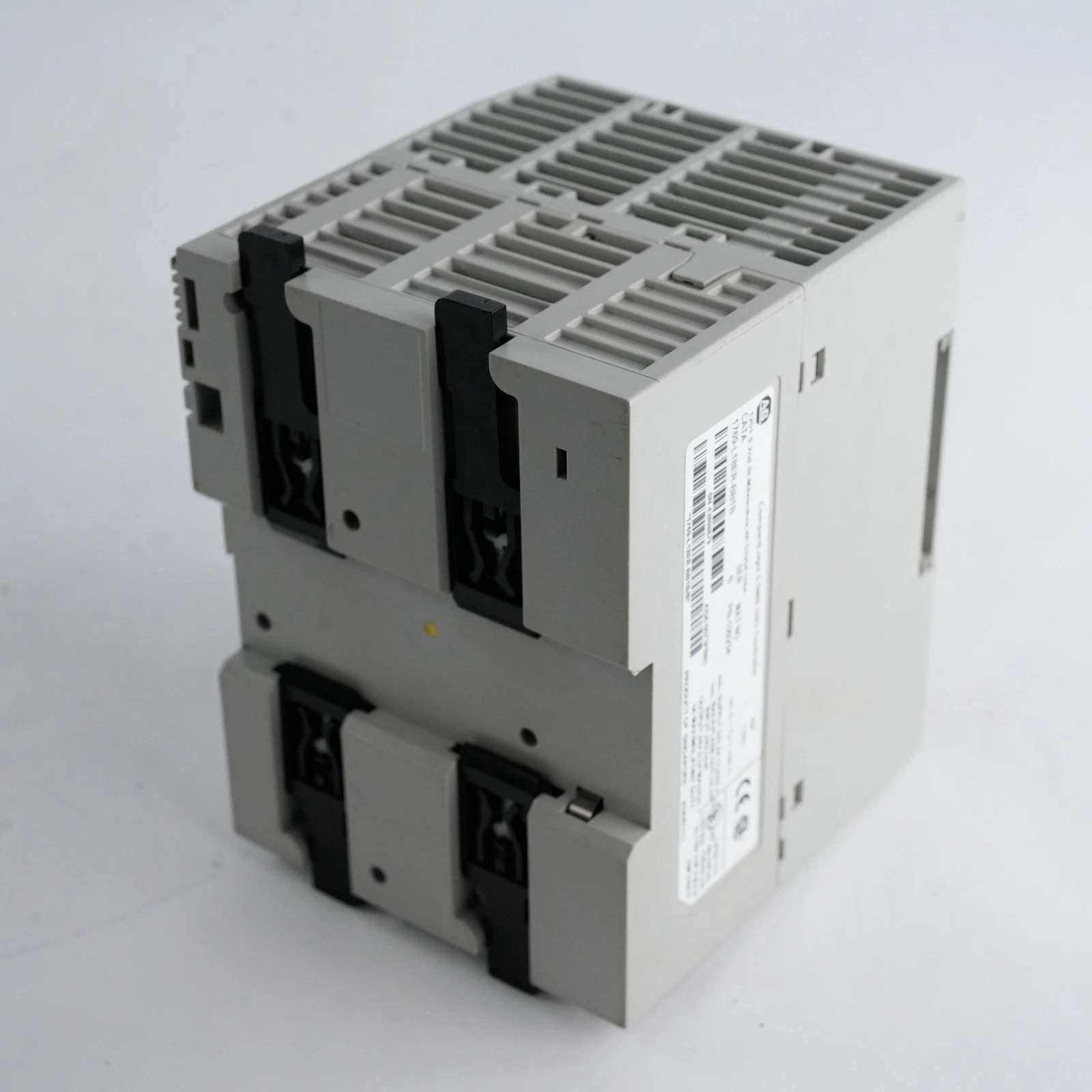

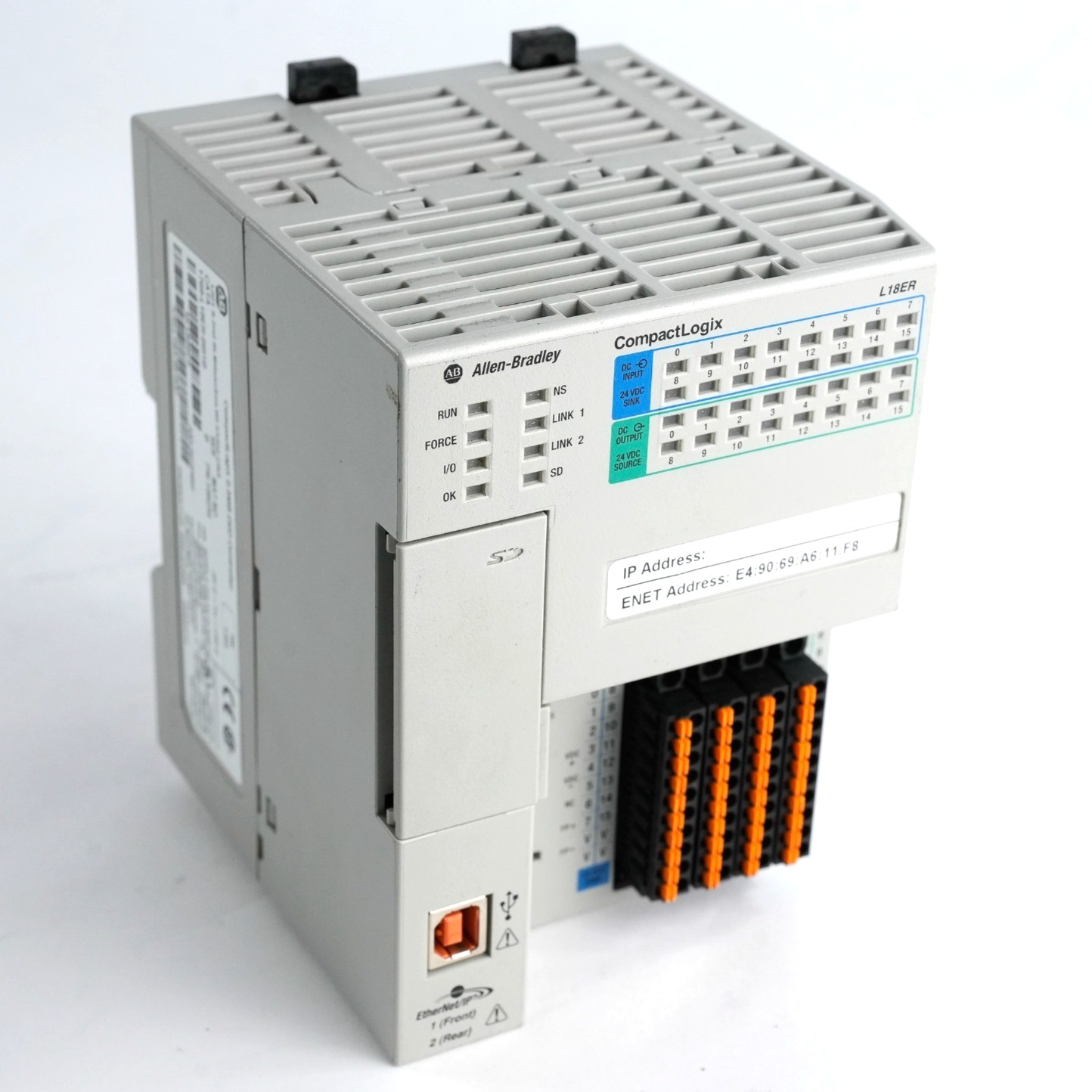

Designed for small-scale automation systems, the 1769-L18ER-BB1B /B CompactLogix controller offers built-in I/O, DLR network support, and Point I/O expansion capability for flexible, scalable machine control solutions.

Key Features:

• Memory & Processing: 512KB (0.5MB) user memory, supporting high-speed logic execution for real-time control tasks.

• Embedded I/O: 16 sinking 24V DC digital inputs and 16 sourcing 24V DC digital outputs for direct local control.

• Network Connectivity: Dual EtherNet/IP ports supporting Linear, Star, and Device Level Ring (DLR) topologies at 10/100 Mbps for enhanced communication resiliency.

• Expansion Capability: Supports up to 8 local 1734 POINT I/O modules for flexible system scaling.

• Programming Compatibility: Works with RSLogix 5000 v20 or Studio 5000 Logix Designer software for easy configuration and programming.

• Industrial Design: DIN rail mountable, compact form factor optimized for space-constrained control cabinets.

• Environmental Ratings: Operating temperature range of -20°C to +60°C, with CE and UL certifications for global industrial use.

• Built-in USB Port: For simple firmware updates, diagnostics, and programming access.

• Shipped with SD Card: Includes a 1GB industrial-grade SD memory card for data logging and program backup.

• Power Efficiency: 24V DC power supply, low power consumption suitable for Class 2 power circuits.
