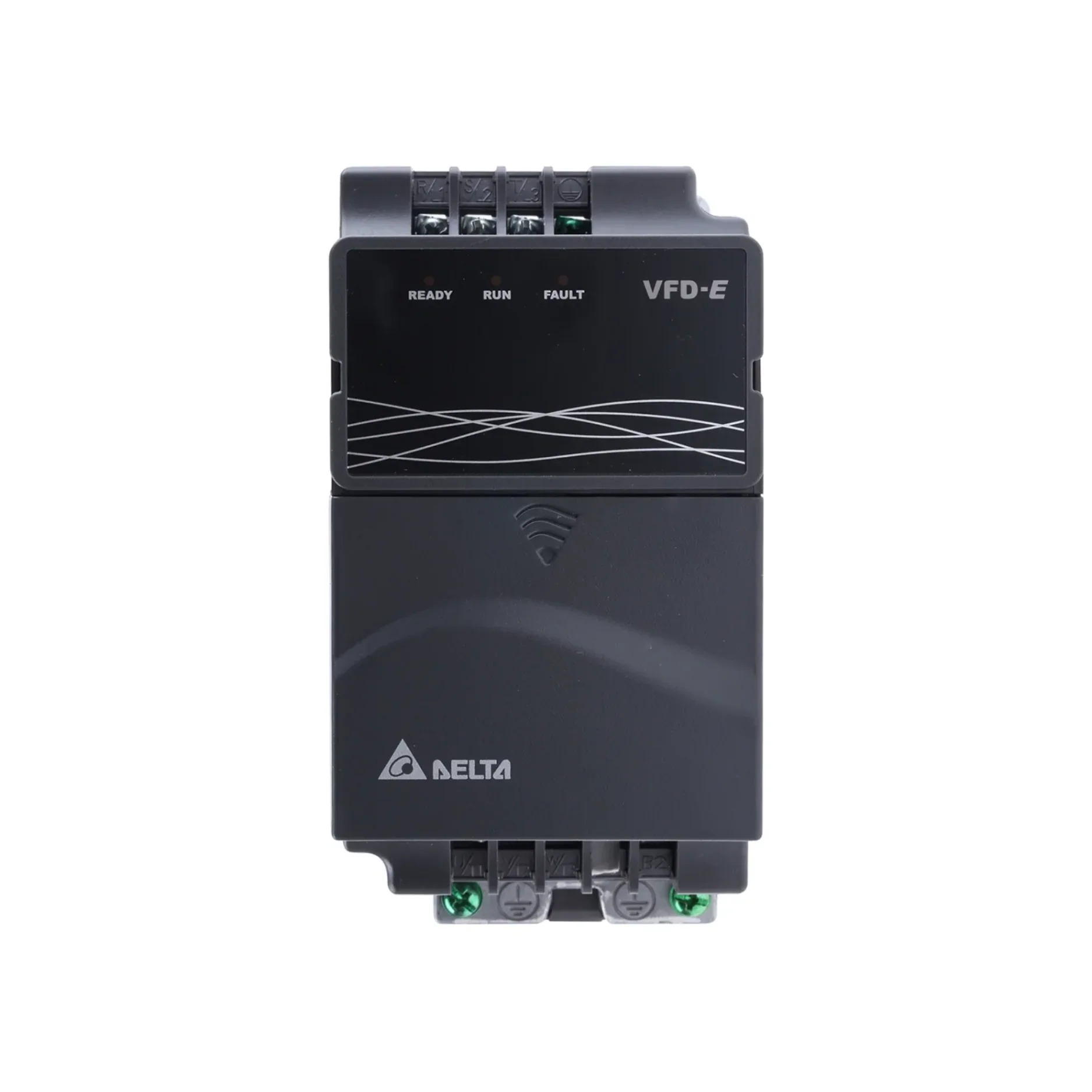

The Delta VFD015E43T is a VFD-E series AC drive designed for dependable variable-speed control of three-phase AC motors. With a 1.5 kW (2 HP) motor capacity and 380–480 V three-phase input, it is suitable for industrial machinery including conveyors, pumps, fans, packaging equipment, material-handling systems, machine tools, and other motor-driven applications. Its 4.2 A rated output current provides suitable capacity for 2 HP motor applications.
The VFD015E43T provides flexible motor-control performance through both V/F and open-loop sensorless vector control. It supports output frequencies up to 599 Hz and includes torque compensation, slip compensation, DC injection braking, overload protection, and built-in dynamic braking capability. The drive also includes an internal PLC and RS-485 Modbus communication, allowing it to integrate into a variety of industrial automation systems.
The drive uses an IP20 enclosure with a compact Frame A design measuring approximately 72 × 142 × 152 mm. It includes an internal EMC filter and built-in braking chopper, while the keypad is available separately depending on configuration. The VFD015E43T is a legacy/discontinued model, making the exact part number particularly useful for maintenance, replacement, and retrofit applications where matching an existing Delta VFD-E installation is important.
