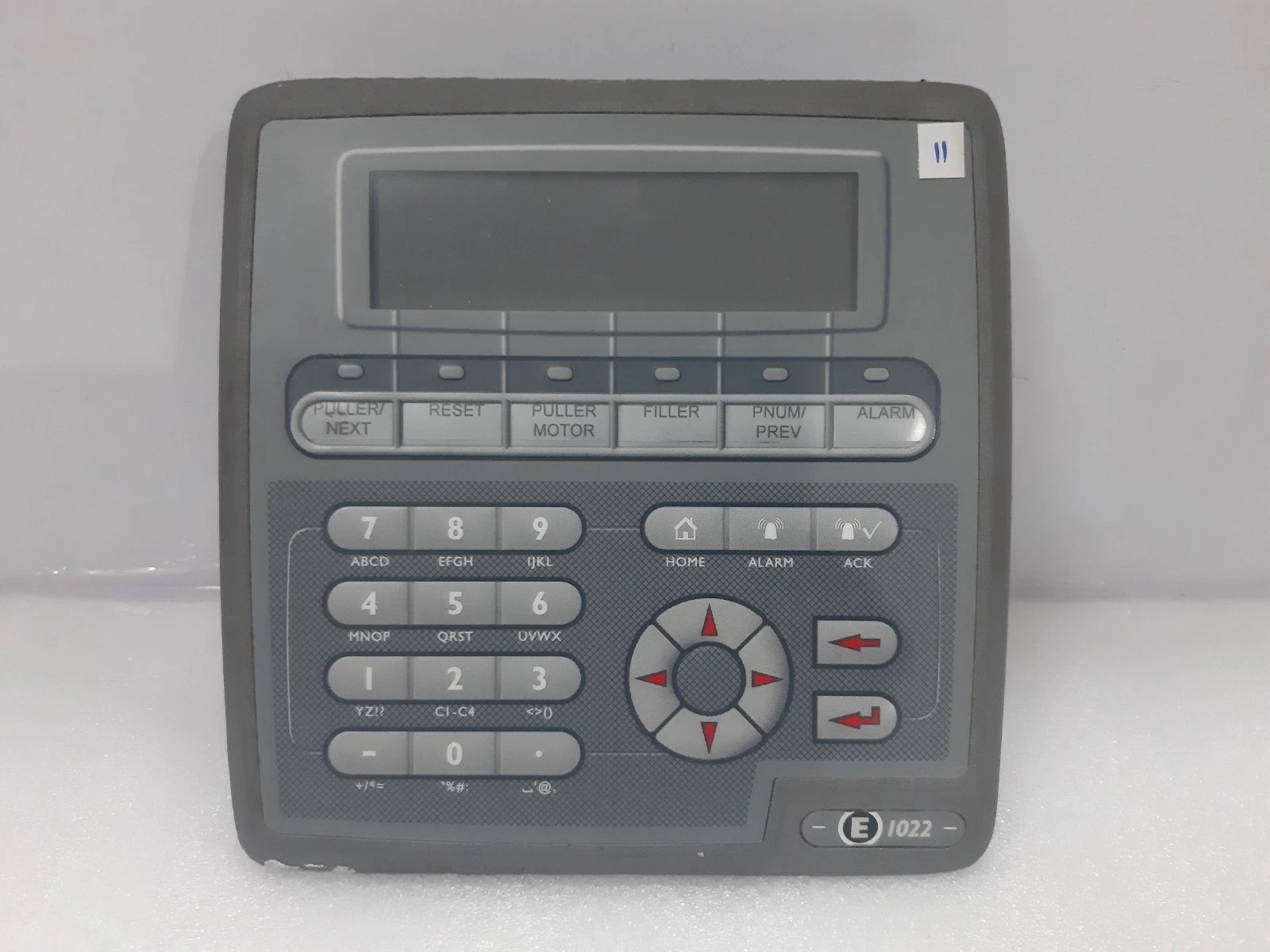

Equipped with a high-contrast FSTN LCD and membrane keypad, the Mitsubishi Beijer E1022 (06871) HMI panel offers robust industrial performance.

Key Features

• Model/Part Number: E1022 (Hardware Part Number: 06871; Software/Order No: 603111202)

• Power Supply: 24 VDC (nominal), rated range 20–30 VDC; 0.1A typical (max 0.3A); internal 1.0A DC fuse

• Display: Monochrome FSTN LCD, 240 x 64 pixels, LED backlight (50,000+ hour lifetime)

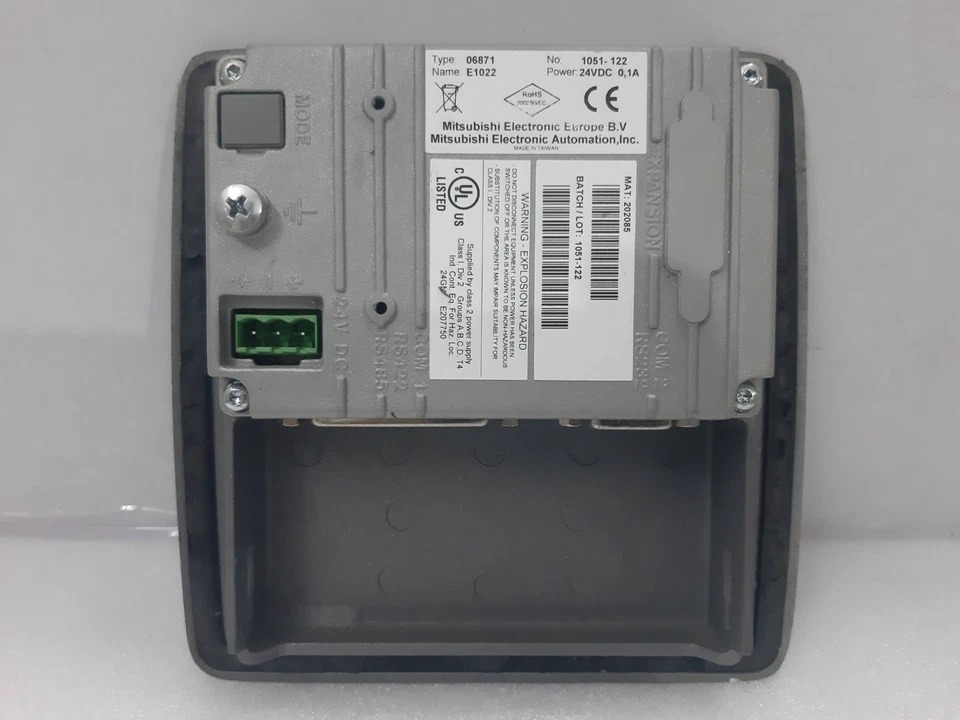

• Communication Ports: 1x RS232 (9-pin D-sub), 1x RS422/RS485 (25-pin D-sub); expansion port for additional modules

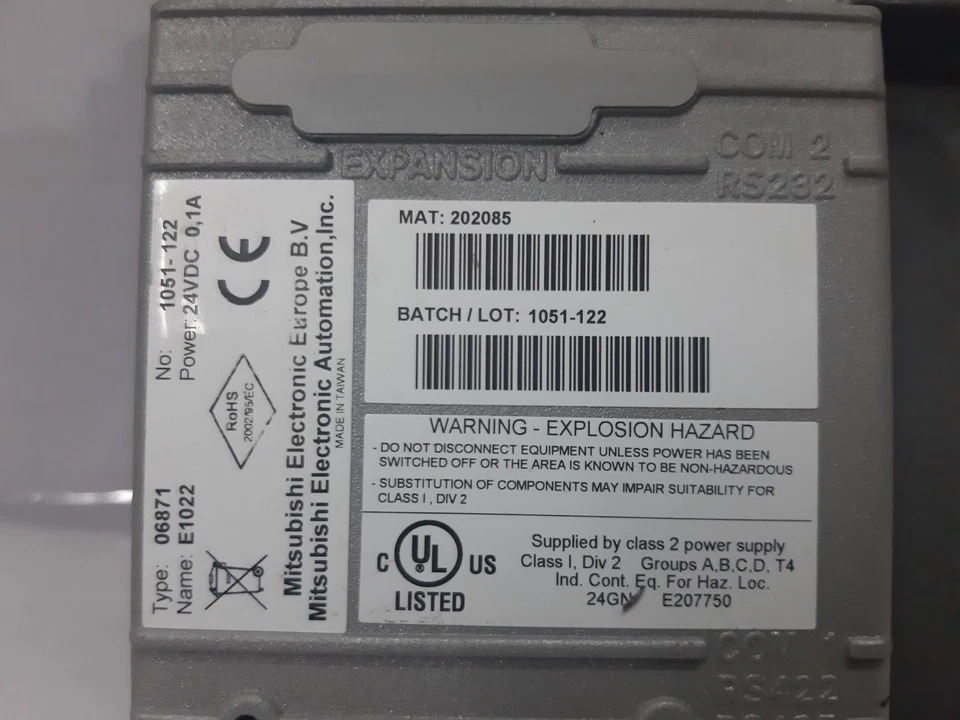

• Certifications: CE, UL Listed (UL 1604 Class I, Div 2; UL 508), RoHS compliant (2002/95/EC)

• Environmental/Ingress: IP66 front panel (dust-tight, high-pressure water resistant); IP20 rear; operating temp 0–50°C

• Physical Specs: 155 x 155 x 52.4 mm; weight 0.55 kg; powder-coated aluminum housing

• Memory: 512 KB SRAM for application storage

• Hazardous Location Rating: Class I, Div 2 Groups A/B/C/D, T4 (intrinsically safe for hazardous areas)
