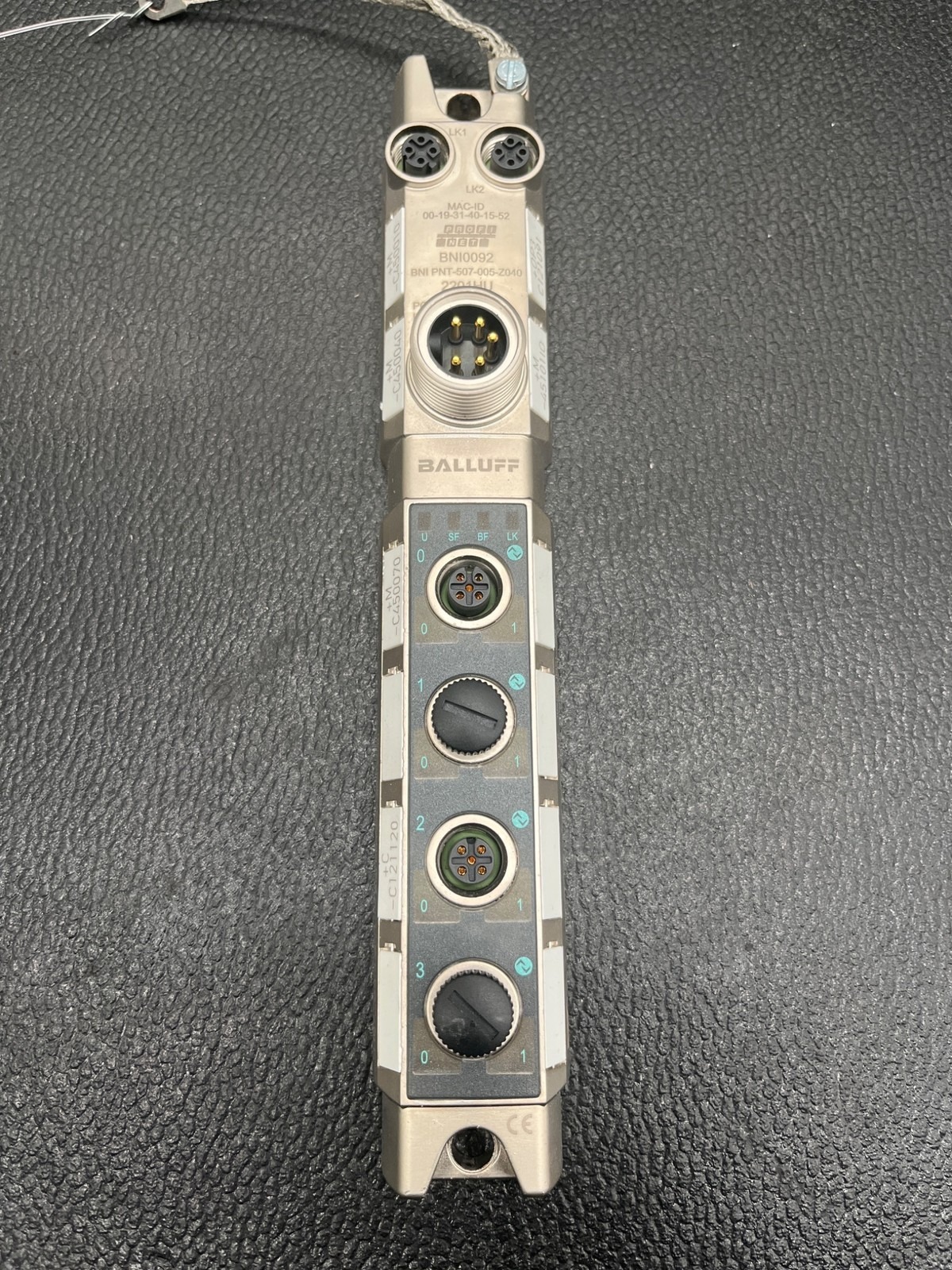

This BNI0092 module offers long-term availability and industrial-grade durability. With a wide operating temperature range, short-circuit protection, and Fast Start-Up support, it is ideal for harsh manufacturing environments requiring reliable, high-performance I/O expansion.

Key Features

• Communication Interface: Certified PROFINET IO (10/100 Mbps) with dual M12 D-coded (4-pin) ports (COM1/COM2)

• IO-Link Capability: 4 × IO-Link ports (Class A, 5-pin M12), IO-Link V1.1 compliant, 2A per-port short-circuit protected

• I/O Flexibility: 8 × configurable PNP digital inputs / outputs (Type 3)

• Power Specifications: 18–30.2 V DC supply; max 9.0A total sensor current, max 9.0A total actuator current

• Environmental Rating: IP67 (dust/waterproof when connectors are mated); -40°C to +70°C operating range

• Mechanical Build: Nickel-plated die-cast zinc housing (Silver Line); 2-hole M4 screw mounting; dimensions: 37 × 32.6 × 224 mm

• Performance Features: Fast Start-Up (FSU) support; integrated web diagnostics; Safety Hub compatibility

• Certifications: PROFINET certified (Z11527), CE, UKCA compliant
