Designed for reliable industrial communication.

Key Features:

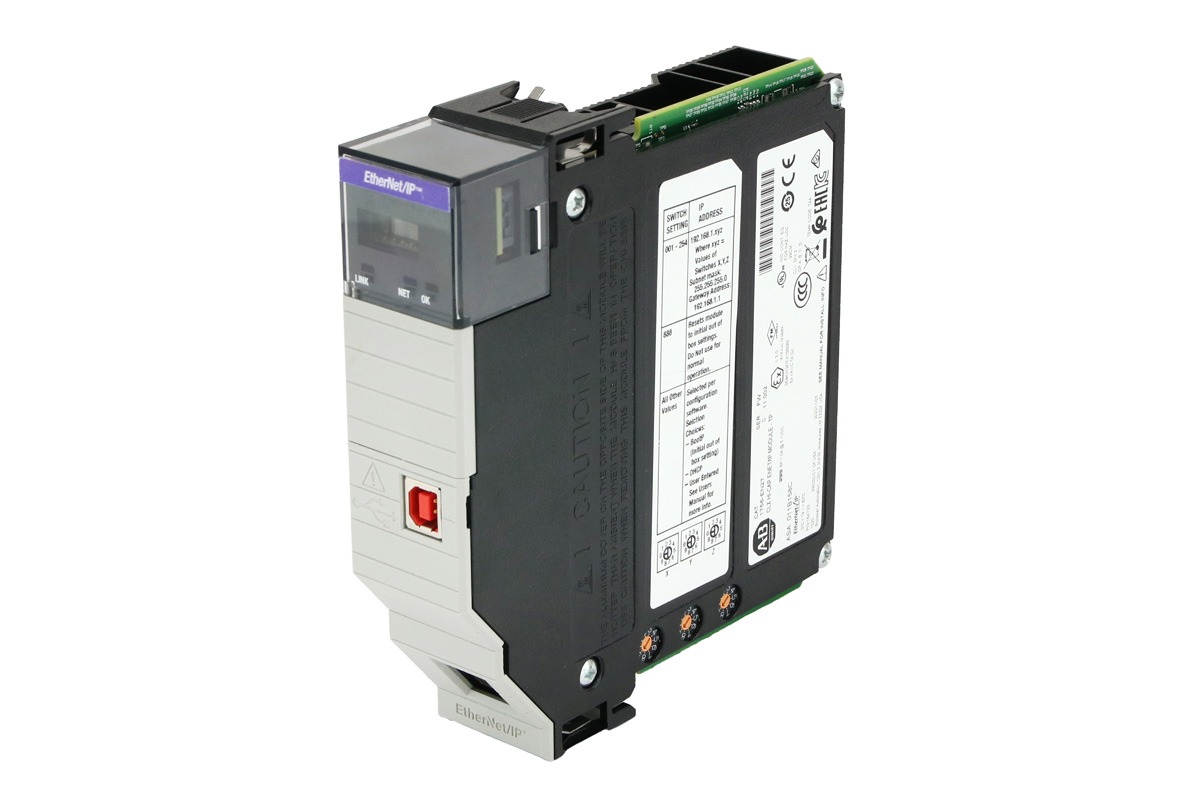

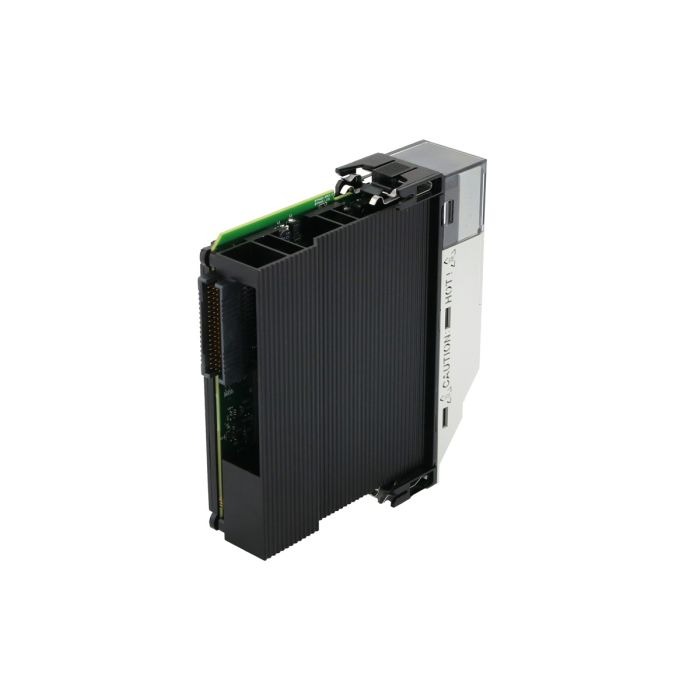

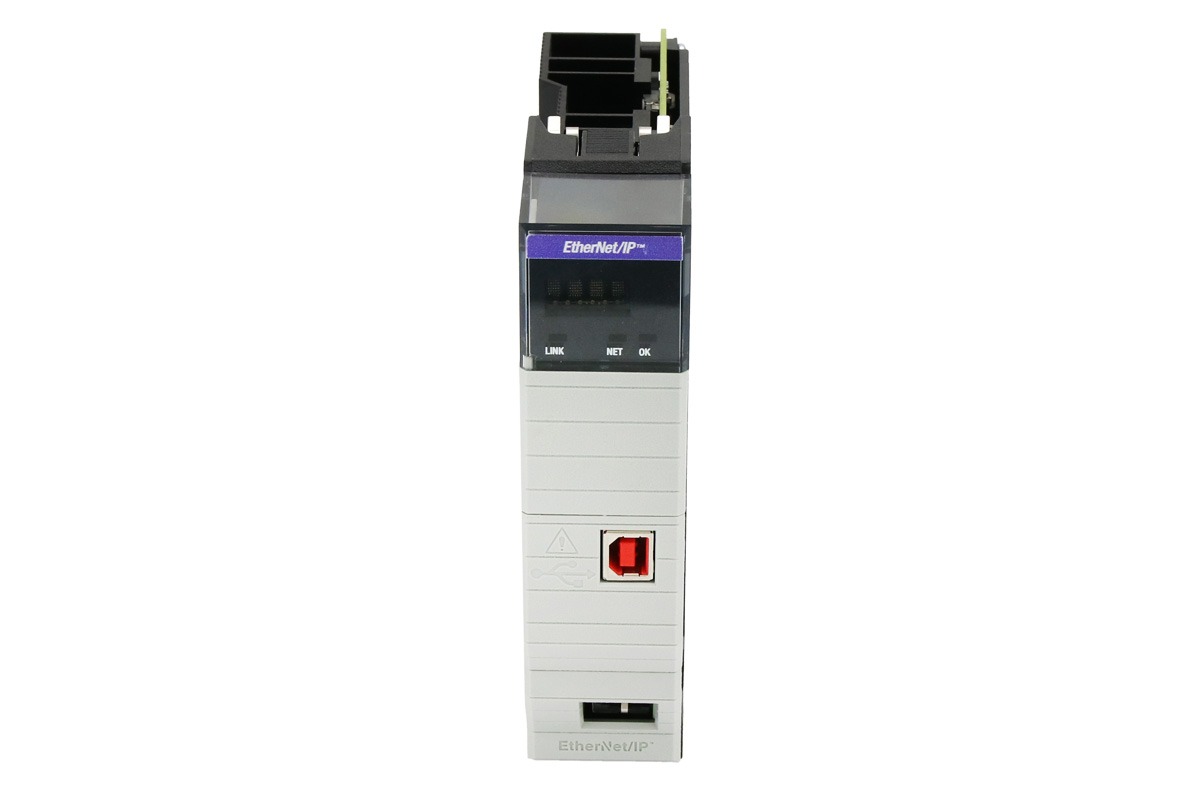

• High-capacity EtherNet/IP bridge module for Allen-Bradley ControlLogix systems

• Supports 10/100 Mbps Ethernet communication speed

• Handles up to 128 TCP/IP connections and 256 Logix connections

• Supports 128 unconnected CIP messages (128 for backplane + 128 for Ethernet)

• Delivers an I/O packet rate of 10,000 packets per second

• Delivers an HMI/MSG packet rate of 3,200 packets per second

• Requires 5.1 VDC backplane power (1.0A max)

• Operating temperature range: 0°C to +60°C

• Compact dimensions: 18.00 x 26.00 x 9.00 cm

• Weight: 1.23 lbs

• Certified for industrial use with CE, UL, CCC, and FM approvals

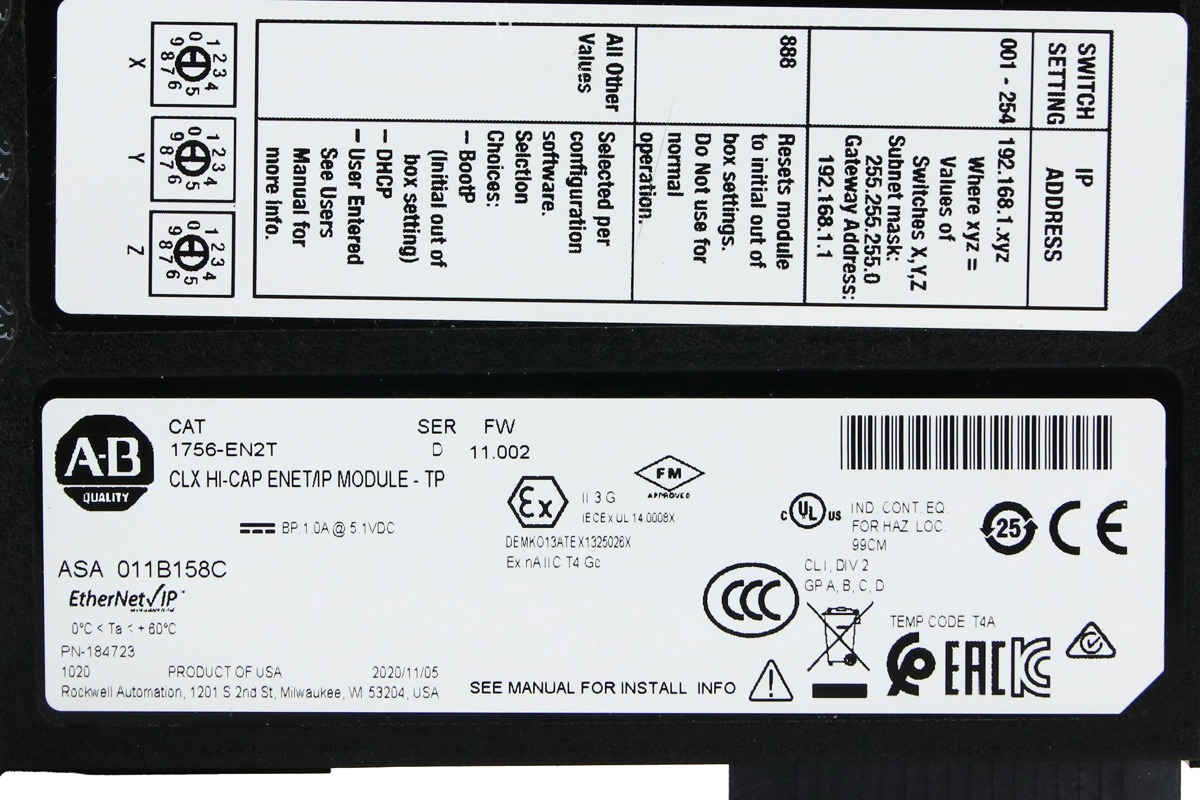

• Firmware version 11.002 (as shown on the unit label)

• Made in the USA (Rockwell Automation, Milwaukee, WI)

• Supports IP address configuration via rotary switches or software

• DHCP/BootP configuration options available

• RoHS compliant (marked with crossed-out wheeled bin symbol)
