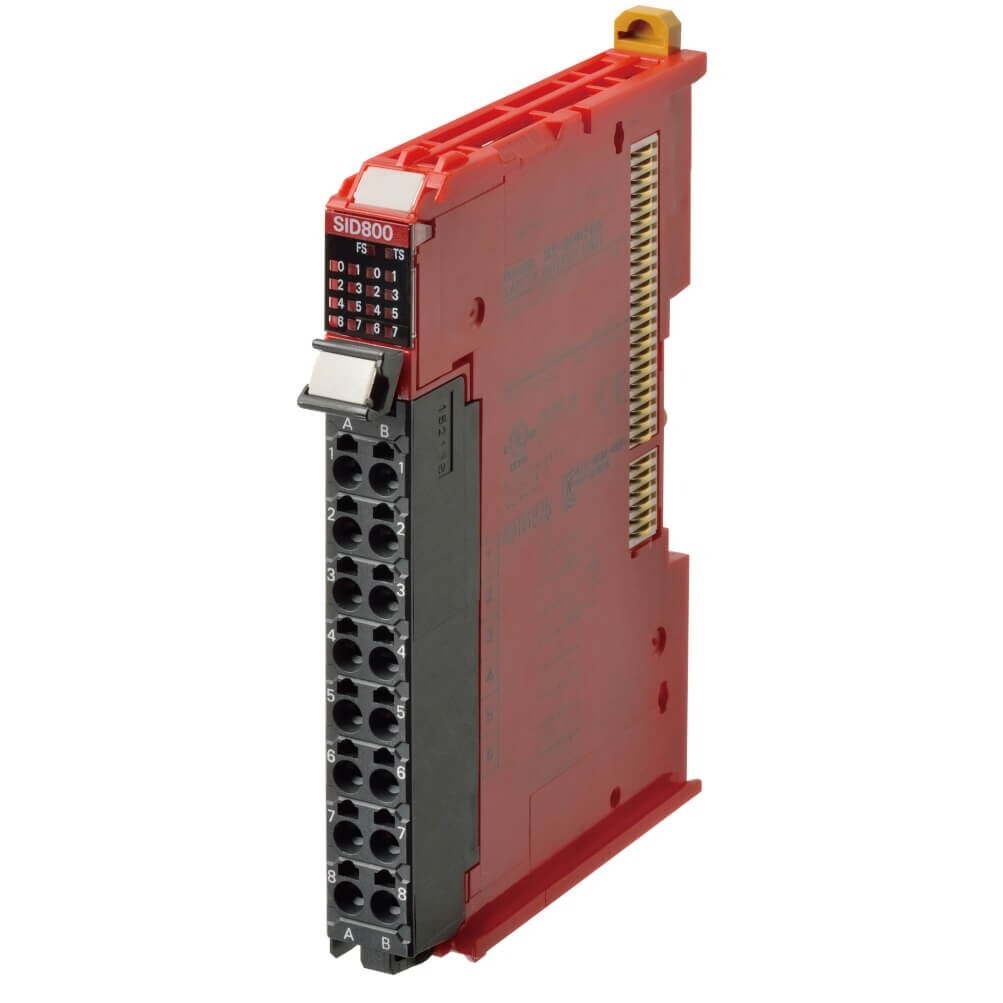

The Omron NX-SID800 is a compact safety input module for the NX-series I/O system. It features 8 safety input channels for connecting emergency stops, safety gates, safety switches, and other safety devices.

Key Features

• Core Identity: High-performance 8-channel safety input module for the Sysmac NX-series automation platform.

• Safety Certification: Meets and exceeds industry standards with SIL 3 (IEC 61508), PL e (EN ISO 13849-1), and Category 4 ratings – ensuring maximum machine protection.

• Input/Output: Features 8 x PNP sinking safety inputs for E-Stops, safety gates, and light curtains, plus 2 x PNP sourcing test outputs for automated diagnostics.

• Power & Connectivity: Powered via the NX I/O bus (24 VDC, 20.4–28.8 VDC); connects via screwless push-in terminals for reliability and speed.

• Compact Design: Slim 12mm width DIN-rail mount design saves critical panel space.

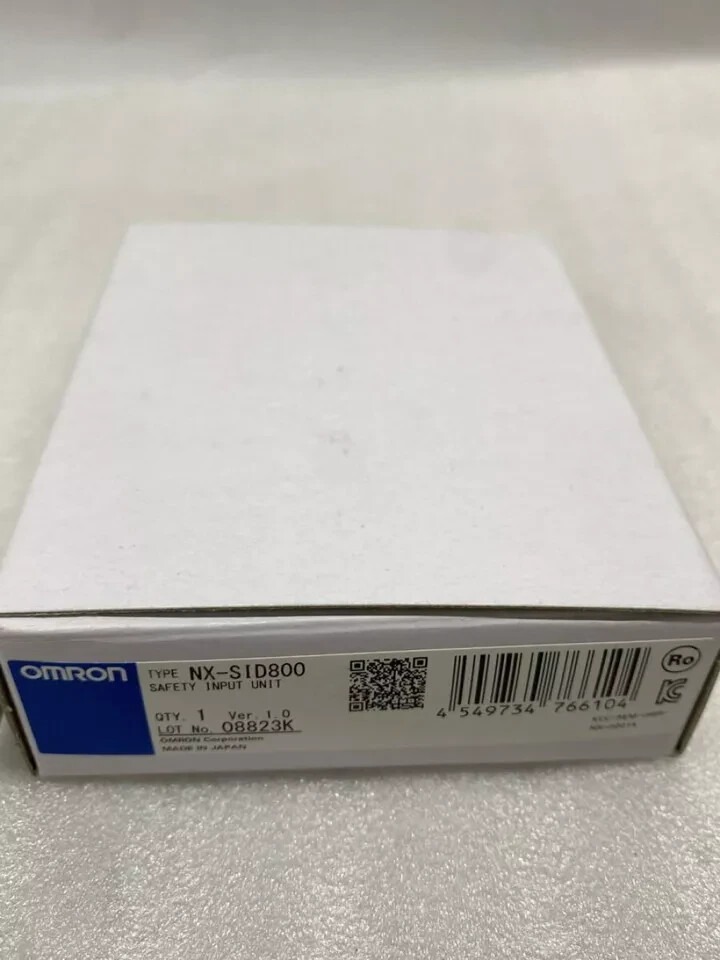

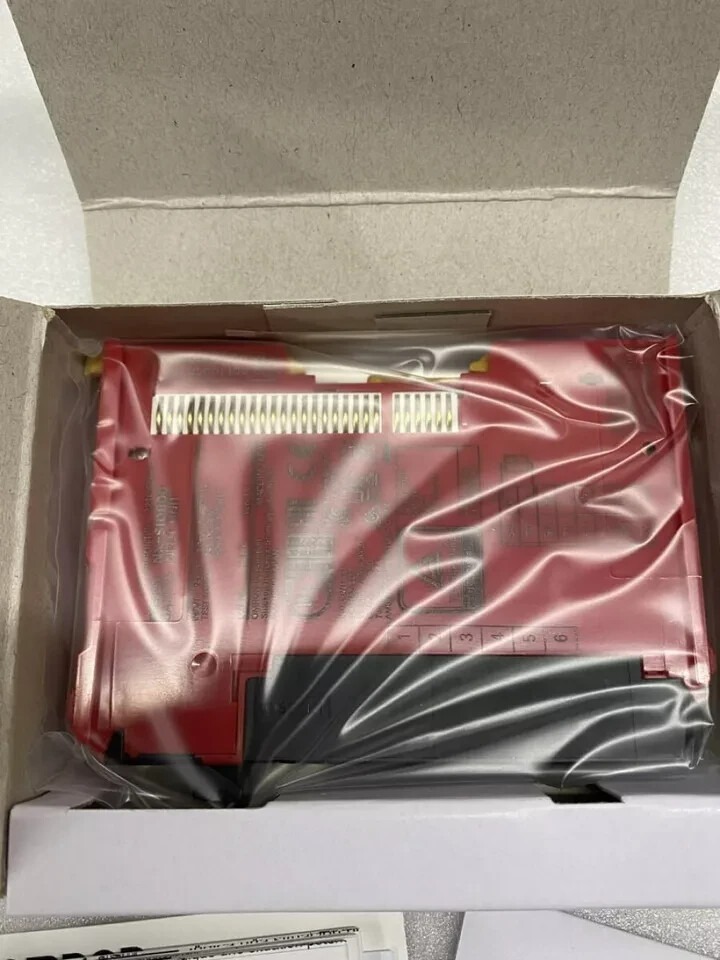

• Included Accessories (In Box): 1 x NX-SID800 Main Unit, 1 x NX-AUX02 Terminal Block Coding Pins, 1 x Quick Start Guide / Datasheet.
