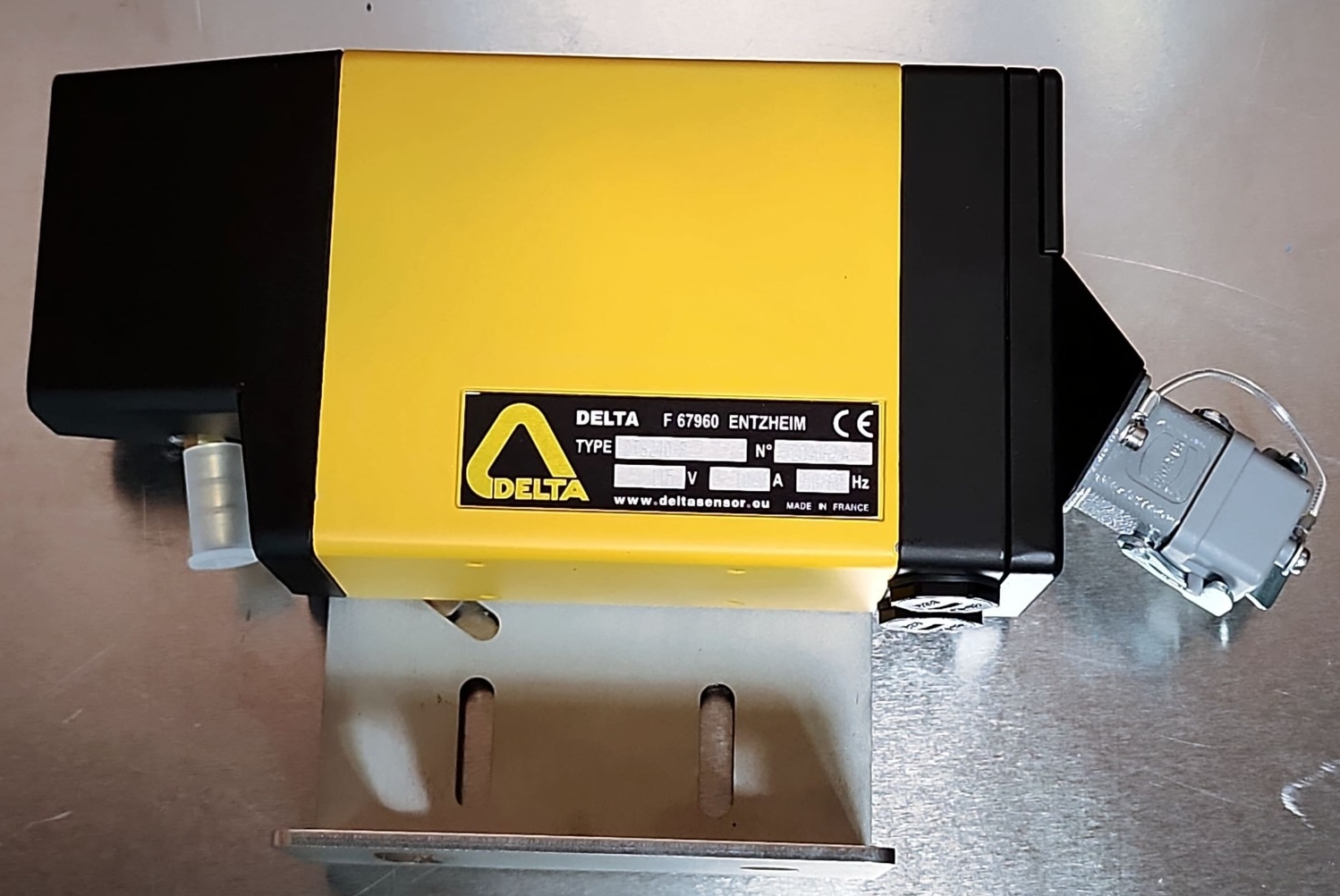

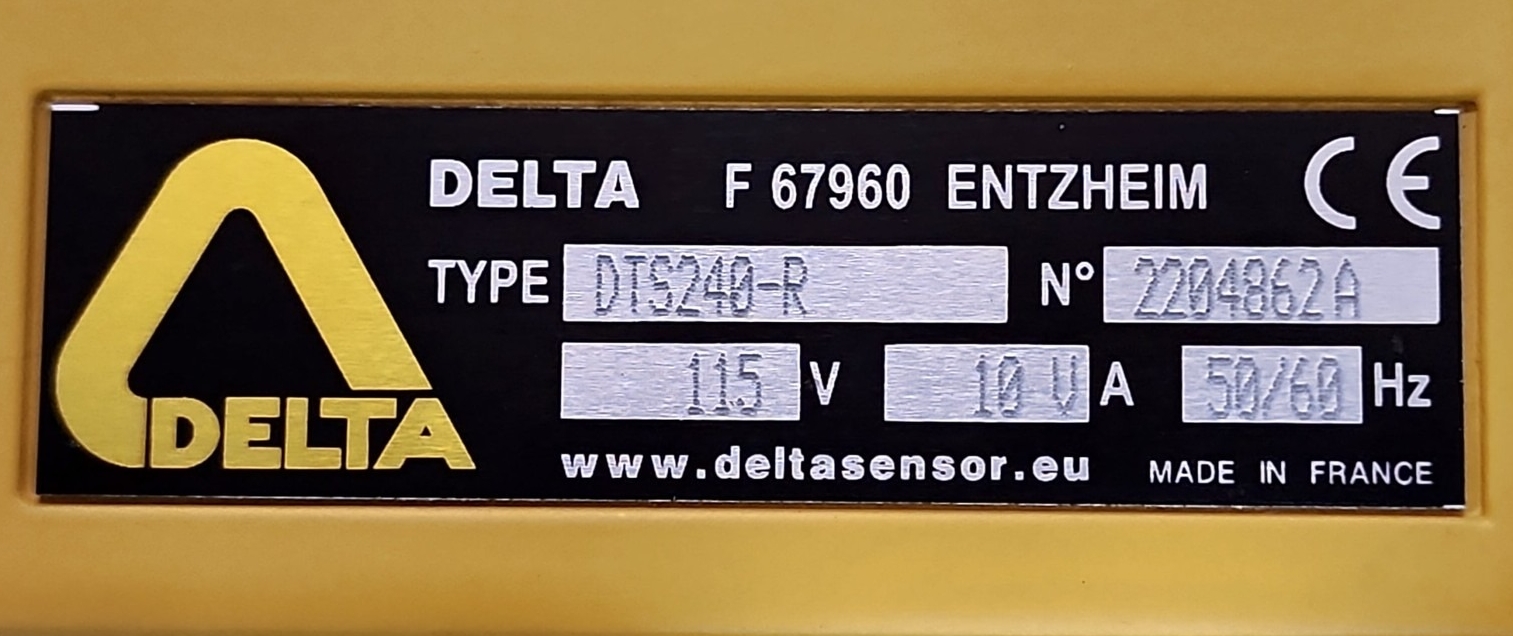

The Delta DTS240-R is a heavy-duty industrial infrared scanning sensor, operating at 115V 50/60Hz, designed for reliable weld hole detection in continuous metal processing applications.

Key Features

• Matching Emitter: Must pair with Delta EMR-M-400 infrared emitter (DTS240-R is a receiver-only unit)

• Operating Principle: Uses modulated infrared light to detect the absence of material (e.g., weld holes) between the emitter and receiver, immune to ambient light interference

• IP Rating: IP66 (heavy-duty industrial enclosure, confirmed for the DTS240 series)

• Operating Temperature: -20°C to +70°C (standard operating range for Delta’s industrial sensors)

• Output Type: Relay-based, single-pole changeover contact (standard for this model)

• Application: Designed for continuous metal strip processing (steel mills, coil lines) to detect weld seams/holes
